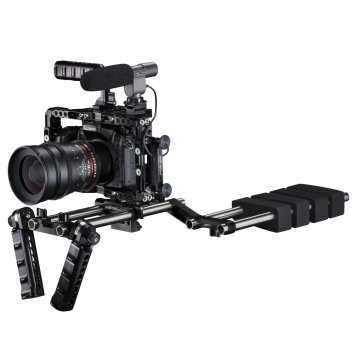

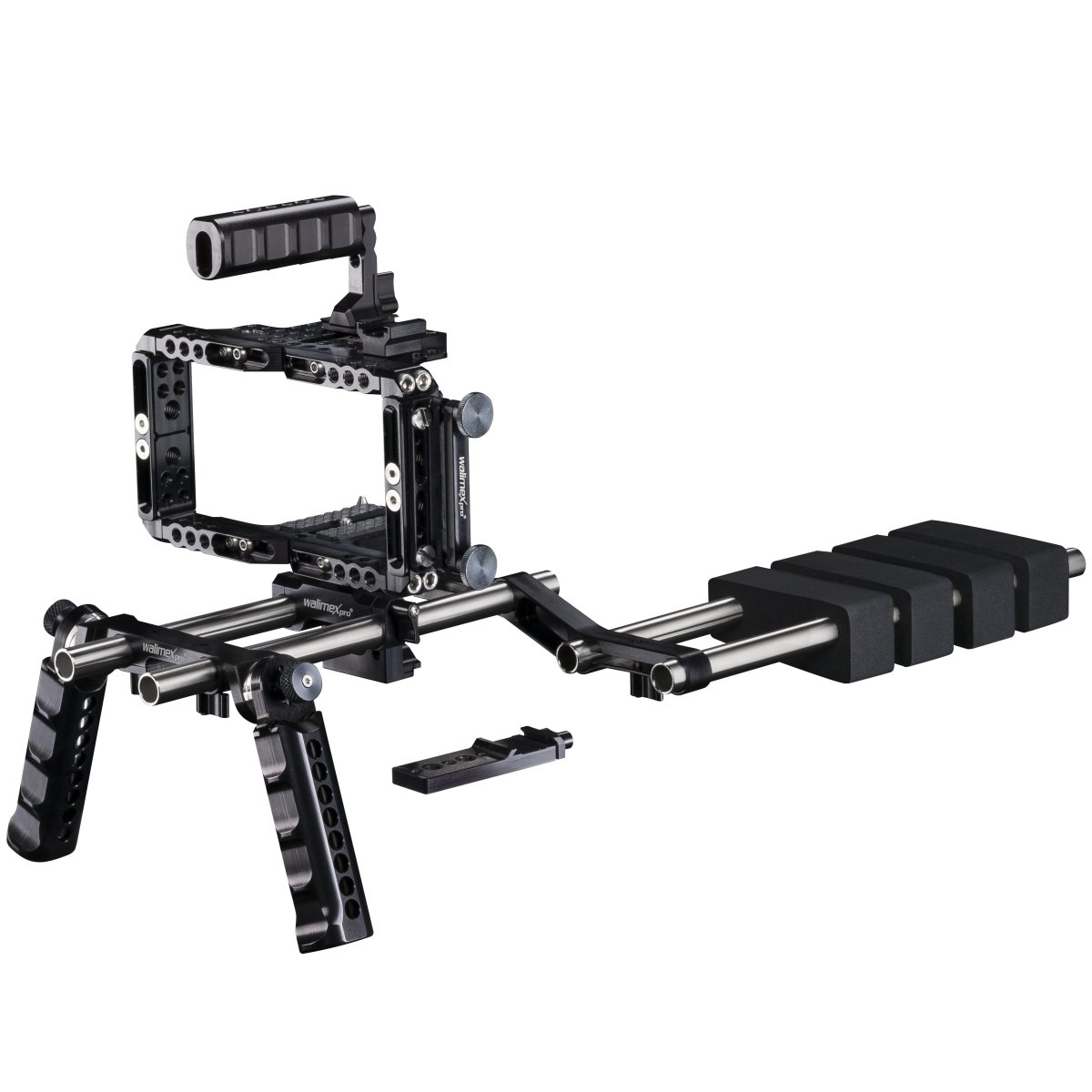

Walimex pro Aptaris Frame action set
-
- Basic rig set comprising the Aptaris frame cage, and the shoulder and handle module
- Includes cable guard and tripod adapter
- Suitable for the most common cameras on the market
- Can be adjusted to the type of camera and the user's own working methods
- Suitable for right and left handers
- "Made in Germany”

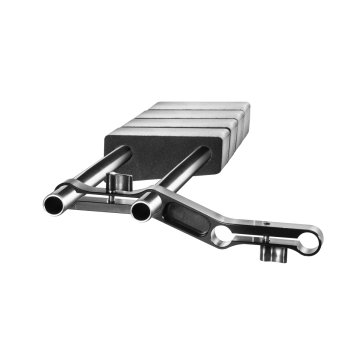

Item descriptionThe walimex pro Aptaris frame action set lightens the workload for longer shoots. A wide range of 1/4" and six 3/8" threads means that the accessories can be set up according to individual needs, and many different attachments can be added. The shoulder support is pushed over the rod system (15 mm industry standard) and securely fixed. It is designed so that it can be used over the right or left shoulder. Soft foam padding ensures that it can remain comfortable even if used for extended periods of time. Just like the shoulder support, the handle module is attached with the 15 mm rods. Thanks to their ergonomic design, the handles feel very comfortable in your hand. Using a rosette (Aptaris standard) the handles can be adjusted as desired. The Aptaris cable guard included in the set is an additional tool to protect the cable connectors of your camera.

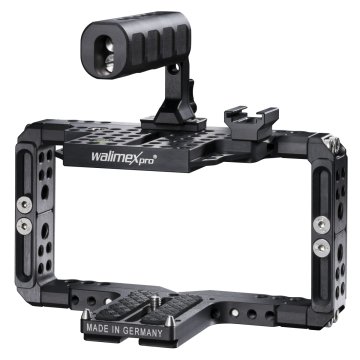

walimex pro Aptaris Universal Frame

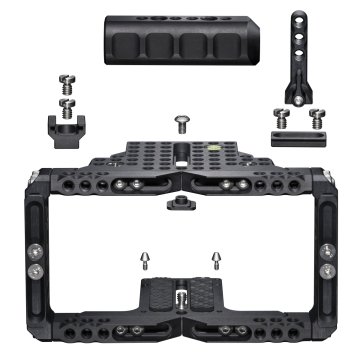

Extremely flexible cage system compatible with virtually every DSLR, mirrorless cameras and small form-factor camcorder heaving flash shoe aligned with tripod thread. The cage allows for effortless mounting of of accessory monitors and 4K recorders such as the Atomos Shogun.The Universal Frame is the first Aptaris cage allowing for adjustment not only in terms of height, but also in terms ofwidth.The adjustable inner space ranges of 78-130mm / 3”-5.1” in height and 160-252mm / 6.3”-9.9” in width make the cage easily adaptable to individual configurations and requirements.If desired, the optional Aptaris Universal XXL Adapter can then provide for height extension of up to 103mm/4”.The Universal Frame is equipped with numerous 1/4" and 3/8” threaded holes on both its Top Plate and Side Supports; these allow for substantial flexibility regarding the mounting of accessories such as lights or microphones.The Frame is also equipped with a bubble indicator for quick and easy levelling.Finally, precisely-machined interfaces on the Top Plate allow for the simultaneous use of up to two optional Aptaris L Brackets, and a new integrated Quick-Release interface on the Base Plate allows for effortless attachment to the Aptaris Rod Module.walimex pro Aptaris tripod adapter
The tripod adapter enables simple and quick relocation of your camera in the Cage from Rig to tripod. You only need to screw the tripod plate of your tripod on to the adapter. The Aptaris tripod adapter has the same receptacle as the Aptaris Rod module and is thus compatible with the Aptaris Universal XL, Universal XL Mk II and Universal Frame. The tripod plate is fastened to the Aptaris tripod adapter in the usual way via 1/4" or 3/8" threads.walimex pro Aptaris cable protection

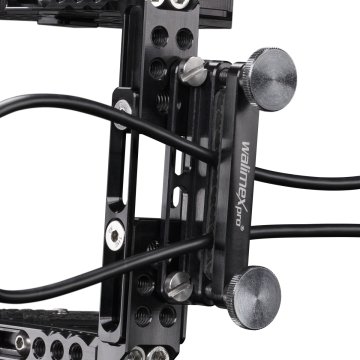

Defective jacks and cable connections are things of days gone by. No matter whether USB, flash synchronization or HDMI connections: The Cable Protection protects these highly sensitive areas against defects caused by pulling the cable. One or several cables at a time can be simply routed through and fixed with two knurled screws. Rubber paddings on either side protects the cables against damage. This padding also allows you to fix cables of different thicknesses. With two 1/4 inch screws the cable protection can be flexibly fastened on the Cage. Just like all accessory parts of the Aptaris system, this cable protection has also been developed and made in Germany. It is characterized by its outstanding workmanship. Extremely light and long lasting aircraft aluminium is also used for this product.Technical specification1x walimex pro Aptaris Rod Modul
Specifications
Height 63mm Length 250mm Product Color black, silver Width 93mm general information
Height 63mm Length 250mm Product Color black, silver Width 93mm general articleinformation
Height 63mm Length 250mm Made in Germany Yes Product Color black, silver Rod diameter 15mm Weight 400g Width 93mm Packaging
Girth 393mm Height of Packaging 59mm Length of Packaging 156mm Weight incl. Packaging 419g Width of Packaging 108mm 1x walimex pro Aptaris Griffmodul
Specifications
Depth 29mm Height 120mm Product Color black Width 240mm general information
Depth 29mm Height 120mm Material aviation aluminium Product Color black Width 240mm general articleinformation
Depth 29mm Height 120mm Made in Germany Yes Material aviation aluminium Product Color black Rod diameter 15mm Weight 370g Width 240mm Packaging
Girth 465mm Height of Packaging 35mm Length of Packaging 241mm Weight incl. Packaging 400g Width of Packaging 180mm 1x walimex pro Aptaris Schultermodul
Specifications
Depth 16mm Height 63mm Width 190mm general information
Depth 16mm Height 63mm Material aircraft-aluminium Width 190mm general articleinformation
Depth 16mm Height 63mm Made in Germany Yes Material aircraft-aluminium Rod diameter 15mm Weight 400g Width 190mm Packaging
Girth 286mm Height of Packaging 32mm Length of Packaging 324mm Weight incl. Packaging 419g Width of Packaging 74mm 1x walimex pro Aptaris Universal Frame
Specifications
Height 154mm Product Color black Width 277mm general information
Cage Compatibility DSLR, CSC, Video camera, Production cameras, Production cameras Height 154mm incl. handle Yes Material anodized aluminium (AW7075) Product Color black rattle clamp No system Cage Width 277mm general articleinformation
Adjustable Height and breadth Cage Compatibility DSLR, CSC, Video camera, Production cameras, Production cameras Height 154mm Inside width max. 130 Inside width max. 160 Inside width max. 252 Inside width max. 78 Material anodized aluminium (AW7075) modular system Yes Product Color black Weight 500g Width 277mm Packaging
Girth 904mm Height of Packaging 143mm Length of Packaging 214mm Packaging with Euro Hole No Weight incl. Packaging 1019g Width of Packaging 202mm 1x walimex pro Aptaris Cable Guard
Specifications
Depth 20mm Length 78mm Product Color black general information
Depth 20mm Length 78mm Material aluminium anodised Product Color black general articleinformation
3/8 inch accesories thread No Depth 20mm Length 78mm Made in Germany Yes Material aluminium anodised Product Color black Weight 38g Packaging
Girth 291mm Height of Packaging 39mm Length of Packaging 104mm Weight incl. Packaging 59g Width of Packaging 71mm 1x walimex pro Aptaris Stativ Adapter
general articleinformation
Made in Germany Yes Packaging
Girth 127mm Height of Packaging 9mm Length of Packaging 126mm Weight incl. Packaging 39g Width of Packaging 50mm Packaging
Girth 1355mm Height of Packaging 150mm Length of Packaging 445mm Weight incl. Packaging 2355g Width of Packaging 305mm Included in delivery- 1x walimex pro Aptaris Universal Frame
- 1x walimex pro Aptaris tripod adapter
- 1x walimex pro Aptaris cable guard
- 1x walimex pro Aptaris rod module
- 1x walimex pro Aptaris handle module
- 1x walimex pro Aptaris shoulder module
