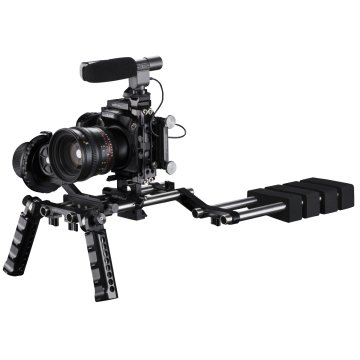

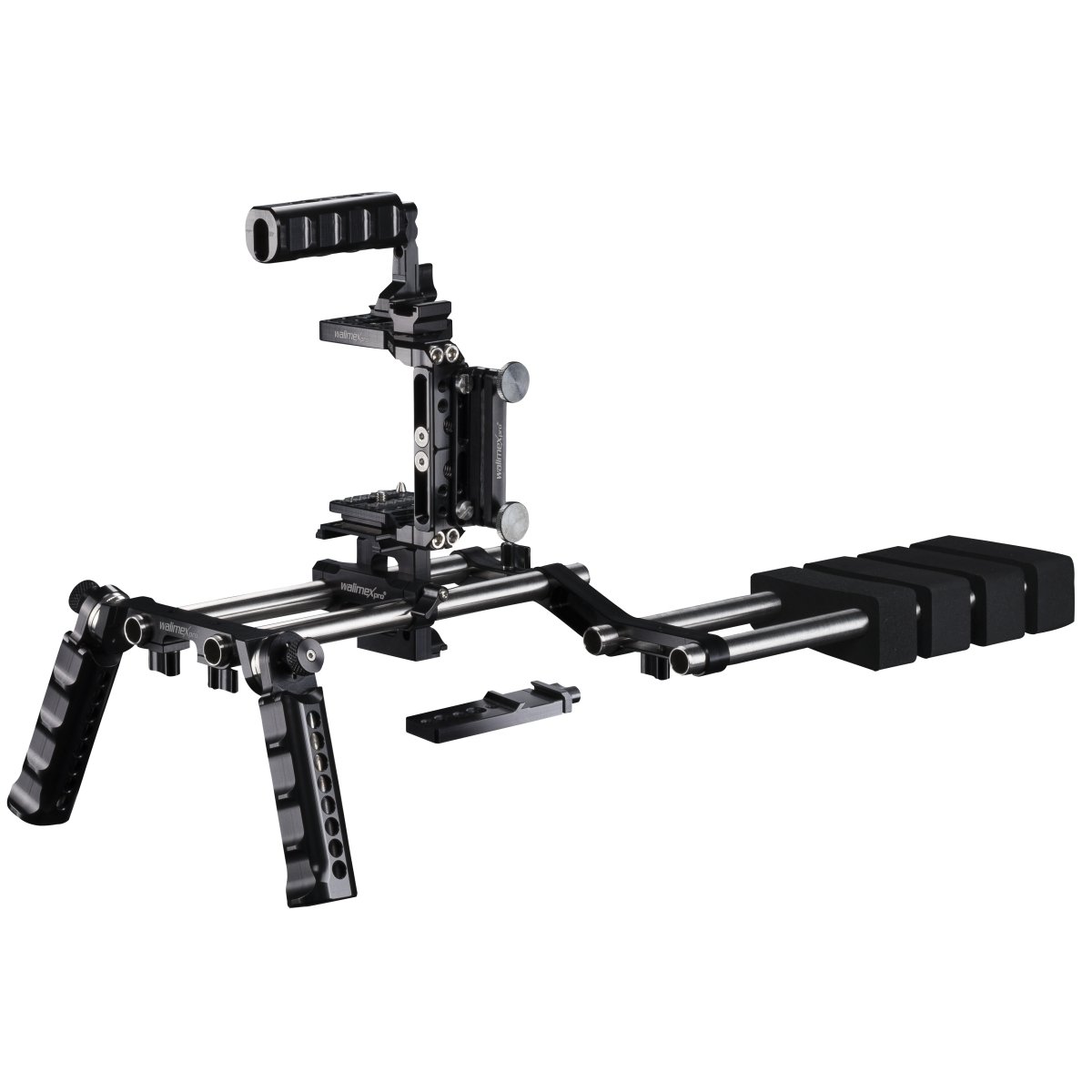

Walimex pro Aptaris Universal XL MK II Action Set
-
- Basic rig set comprising the Aptaris Universal XL MK II, rod module, shoulder module and grip module
- includes cable guard and tripod adapter
- suitable for cameras currently available on the market and a large range of camcorders, such as Blackmagic Cinema, Sony Alpha a7 II, Sony FS700, Panasonic GH4, Canon EOS 5DS, Canon C100, Canon EOS 5D Mark III, Nikon D7200, Nikon D810A, Nikon D4S, Fujifilm X-T10 etc.
- can be adapted to the camera type and personal working methods
- can be turned from a cage into a rig
- suitable for right and left handers
- "Made in Germany”

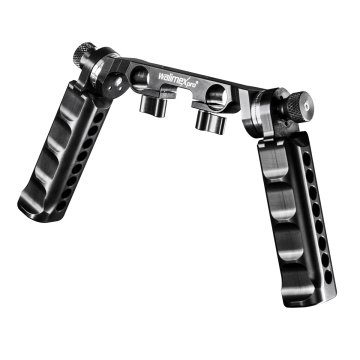

Item descriptionThe walimex pro Aptaris Universal XL MK II set provides relief during prolonged periods of filming. A wide range of 1/4 and 3/8" threads means you can create you own set-up and incorporate a wide range of accessories. The Universal XL MK II cage can be quite simply attached to the rod module using a clamping screw. The shoulder support is pushed over the rod system (15 mm industry standard) and securely attached. It is designed so that it can be used for left or right shoulder. Soft foam padding ensures it is comfortable and pleasant to wear even for prolonged use. Just like the shoulder support, the grip module is attached via the 15 mm rods. Thanks to their ergonomic design, the grips fit comfortably into your hand. Thanks to the rosette (Aptaris standard) the hand grips can be adjusted how you like. The Aptaris cable guard included in the set is a useful tool for protecting your camera's cable connectors.

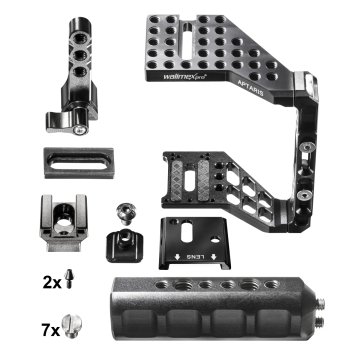

walimex pro Aptaris Universal XL MK II
walimex pro Aptaris Universal XL Mk II provides you with even more possibilities. With its additional 1/4 inch and 3/8 inch tapped bores, accessories like a microphone or a filming light can be mounted even more flexibly. The new and bigger handle makes it even more comfortable to carry. Apart from that it comes with two 1/4 inch and four 3/8 inch tapped bores. The Universal XL Mk II matches all common cameras, such as e.g. Panasonic GH-4, Nikon D800 or Canon 5D Mark III. In short, for all cameras whose flash shoe and tripod thread are positioned on one axis and do not exceed or fall short of the inside measurements of the cage. Aptaris is simply fastened to the camera by the flash shoe of the camera and the camera screw fitting (1/4-inch thread). The adjustability of the cage in height via four Allen screws is an absolute highlight. This makes the version suitable for a vast range of cameras. Two small hooks on the camera mount, which can be individually adapted to the camera, ensure absolutely skid-free mounting.
Due to its vast number of 1/4 inch threads on all sides as well as a 3/8 inch thread on the bottom side, a vast amount of accessories, like microphones or LED-lights, can be mounted, just as desired. The adjustable handle, which can be mounted at the top, the bottom or at the sides, just as required, provides additional flexibility in use. This enables also filming near ground level. Due to an adapter plate with Manfrotto PL 501 standard, you can also mount Aptaris on a Manfrotto tripod. Access to battery compartment, memory card etc. is in any case ensured.
Tripod adapter

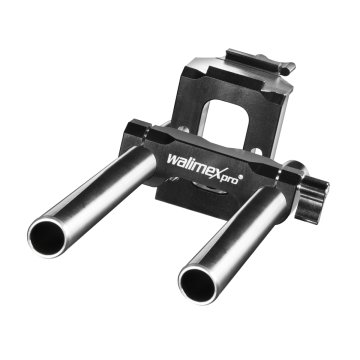

The tripod adapter enables simple and quick relocation of your camera in the Cage from Rig to tripod. You only need to screw the tripod plate of your tripod on to the adapter. The Aptaris tripod adapter has the same receptacle as the Aptaris Rod module and is thus compatible with the Aptaris Universal XL, Universal XL Mk II and Universal Frame. The tripod plate is fastened to the Aptaris tripod adapter in the usual way via 1/4" or 3/8" threads.Cable guard

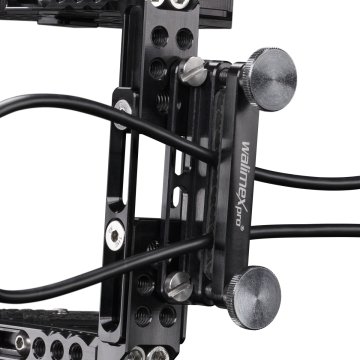

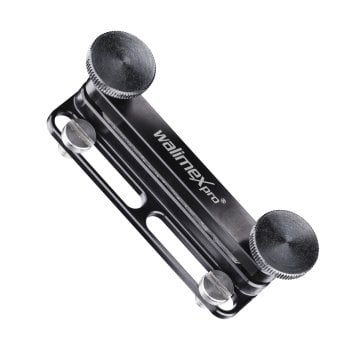

Defective jacks and cable connections are things of days gone by. No matter whether USB, flash synchronization or HDMI connections: The Cable Protection protects these highly sensitive areas against defects caused by pulling the cable. One or several cables at a time can be simply routed through and fixed with two knurled screws. Rubber paddings on either side protects the cables against damage. This padding also allows you to fix cables of different thicknesses. With two 1/4 inch screws the cable protection can be flexibly fastened on the Cage. Just like all accessory parts of the Aptaris system, this cable protection has also been developed and made in Germany. It is characterized by its outstanding workmanship. Extremely light and long lasting aircraft aluminium is also used for this product.Technical specification1x walimex pro Aptaris Rod Modul
Specifications
Height 63mm Length 250mm Product Color black, silver Width 93mm general information
Height 63mm Length 250mm Product Color black, silver Width 93mm general articleinformation
Height 63mm Length 250mm Made in Germany Yes Product Color black, silver Rod diameter 15mm Weight 400g Width 93mm Packaging
Girth 393mm Height of Packaging 59mm Length of Packaging 156mm Weight incl. Packaging 419g Width of Packaging 108mm 1x walimex pro Aptaris Griffmodul
Specifications
Depth 29mm Height 120mm Product Color black Width 240mm general information
Depth 29mm Height 120mm Material aviation aluminium Product Color black Width 240mm general articleinformation
Depth 29mm Height 120mm Made in Germany Yes Material aviation aluminium Product Color black Rod diameter 15mm Weight 370g Width 240mm Packaging
Girth 465mm Height of Packaging 35mm Length of Packaging 241mm Weight incl. Packaging 400g Width of Packaging 180mm 1x walimex pro Aptaris Schultermodul
Specifications
Depth 16mm Height 63mm Width 190mm general information
Depth 16mm Height 63mm Material aircraft-aluminium Width 190mm general articleinformation
Depth 16mm Height 63mm Made in Germany Yes Material aircraft-aluminium Rod diameter 15mm Weight 400g Width 190mm Packaging
Girth 286mm Height of Packaging 32mm Length of Packaging 324mm Weight incl. Packaging 419g Width of Packaging 74mm 1x walimex pro Aptaris Universal XL Mk II
Specifications
Depth 72mm Height 155mm Product Color black Width 104mm general information
Cage Compatibility DSLR, CSC, Video camera Depth 72mm Height 155mm incl. handle Yes Material aviation aluminium Product Color black rattle clamp No system Cage Width 104mm general articleinformation
Adjustable Height Cage Compatibility DSLR, CSC, Video camera Depth 72mm Height 155mm Inside width max. 133 Inside width max. 81 Made in Germany No Material aviation aluminium modular system Yes Product Color black Rod diameter 15mm Weight 406g Width 104mm Packaging
Girth 606mm Height of Packaging 78mm Length of Packaging 202mm Packaging with Euro Hole No Weight incl. Packaging 660g Width of Packaging 186mm 1x walimex pro Aptaris Cable Guard
Specifications
Depth 20mm Length 78mm Product Color black general information
Depth 20mm Length 78mm Material aluminium anodised Product Color black general articleinformation
3/8 inch accesories thread No Depth 20mm Length 78mm Made in Germany Yes Material aluminium anodised Product Color black Weight 38g Packaging
Girth 291mm Height of Packaging 39mm Length of Packaging 104mm Weight incl. Packaging 59g Width of Packaging 71mm 1x walimex pro Aptaris Stativ Adapter
general articleinformation
Made in Germany Yes Packaging
Girth 127mm Height of Packaging 9mm Length of Packaging 126mm Weight incl. Packaging 39g Width of Packaging 50mm Packaging
Girth 1355mm Height of Packaging 150mm Length of Packaging 445mm Weight incl. Packaging 1996g Width of Packaging 305mm Included in delivery- 1x walimex pro Universal XL MK II,
- 1x walimex pro Aptaris grip module,
- 1x walimex pro Aptaris shoulder module,
- 1x walimex pro Aptaris cable guard,
- 1x walimex pro Aptaris tripod adapter,
- 1x walimex pro Aptaris rod module
